Precision Matthews CS-350 Cold Saw
From Asmbly Wiki
Asmbly has purchased a Precision Matthews CS-350 3hp, 14" cold saw. This saw is used to make precision, repeatable cross and miter cuts in metal bar stock.
Members must complete the Metal Shop Safety Class before using this tool
- Variable blade speed for the best cutting speed to match the job from 24-120 RPM
- Quick Acting lever for angle changes, can be done in only a few seconds
- This saw has a 90 degree swivel head, for slotting capability
- Quick Acting vise lever, for faster operation on multiple cuts of the same size
- Miters 45 degrees, both ways (Left and Right)
- Adjustable Work Stop with Inch/MM Readings included as standard equipment, for faster repetitive cuts
- Recirculating coolant system protects blade and workpiece
Cutting Capacities
| Angle | Bar | Round Tube | Square Tube | Rectangular Tube |
|---|---|---|---|---|
| 0º | 3.5" | 4.7" | 4"x4" | 6.3"x3.5" |
| 45º | 3" | 4" | 4.5"x4.5" | 3.5"x2.8" |

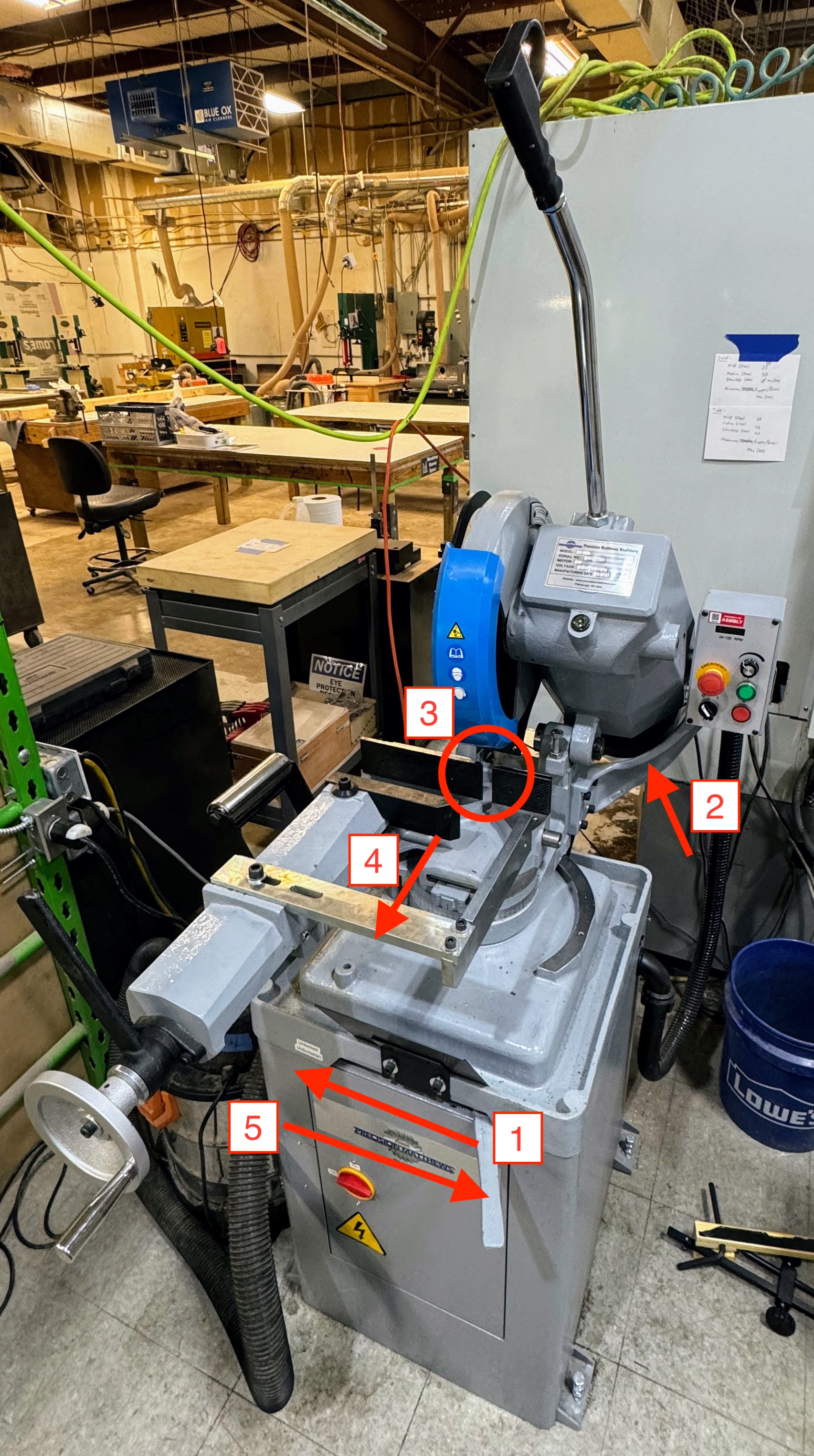

Cutting Angle Adjustment
- Unlock front handle by sliding to the left
- Rotate saw to adjust angle. The easiest spot is pushing or pulling the curved vertical arm on the right
- Make sure the blade clears and will not cut the work piece clamp!
- If it doesn't - pull/push the clamp forward/backwards until it clears
- Lock the front handle by sliding to the right
Resources
Maintenance
This tool is owned by Asmbly Makerspace for the use of its members. Please submit a problem report if maintenance is required.
